品牌: 宏聚电子
起订: 1000个
供应: 100000个
发货: 3天内
发送询价

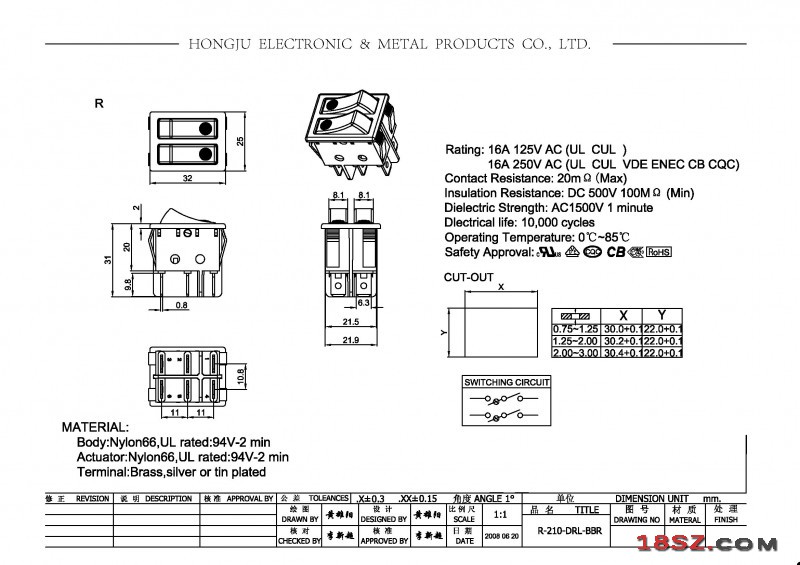

船型翘板开关R-210-DR0L-BBR
2019-11-22 20:22 浏览:1705 返回列表
详细信息
Rating: 16A/125V AC (UL/cUL), 16A/250V AC (UL/cUL/CQC/ENEC/VDE/CB)
Contact resistance: 50mΩ max
Insulation resistance: 500V DC/100MΩ minimum
Dielectric strength: 1500V AC/1 minute
Electrical life: 10,000 cycles
Operating temperature: 0-85°C
Function: ON-OFF
Illuminated: neon (RED)
Contact resistance: 50mΩ max
Insulation resistance: 500V DC/100MΩ minimum
Dielectric strength: 1500V AC/1 minute
Electrical life: 10,000 cycles
Operating temperature: 0-85°C
Function: ON-OFF
Illuminated: neon (RED)
